Finger cylinder (pneumatic finger or air claw) hian grasping function hrang hrang a hre thei a, tunlai manipulator-a thil pawimawh ber a ni a, packaging industry, food industry hmanrua chungchanga workpiece man nan hman a ni fo thin.
I. Finger cylinder hman chhan .
Pneumatic fingers, pneumatic gripper emaw air claw tia hriat bawk hi compressed air hmanga siam niin, workpiece pinch emaw grab emaw nan an hmang thin. Japan atanga lo chhuak a nih avangin domestic automation enterprise te chuan an hmang nasa hle a ni.
A tlangpuiin style hi a tlangpuiin y type pinch finger leh flat type pinch finger ah then theih a ni. Cylinder diameter hi 16mm, 20mm, 25mm,32mm leh 40mm ah te then a ni. A hnathawh ber chu mihring grasp hnathawh thlak a ni a, a siam chhuah thatna leh hnathawh himna a tichangtlung thei a ni. SMC pneumatic finger series hi industrial field-a pneumatic clamping device hman tam ber zinga mi a ni a, a hmanna tur hmun hi a pawimawh hle.
 |  |
II a ni. Finger cylinder (air claw) a thlan chhuah te chu .
1) Parallel Open -Close Type(MHZ2{{5}20D,MHZL2-16D,MHL-16D) emaw fulcrum open-close type(MHC2-16D,MHC2-20D) emaw chu a lian leh te, a pian leh murna, a pian leh a zawng zawng, a hnathawh tum ang zelin a khar a
2) Finger cylinder (air claw) series chu a lian leh te, a pianzia, a outreach, environment hman dan leh a workpiece hman dan tur a zirin thlang la
3) Air claw clamping force angin air claw size, clamping point hlat zawng, outreaching amount leh stroke te thlang la
4) A mamawh dan azirin duhthlan tur tam zawk siam theih a ni.
iii a ni. Finger cylinder (air claw) a thil awm dan te.
1) Finger cylinder-a structure zawng zawng chu double-acting an ni a, chu chuan pahnih-way grasping, automatically align, repetition accuracy sang tak neiin a realise thei a;
2) Constant grasping moment;
3) Magnetic switch atan cylinder sir lehlamah grooves;
4) Installation leh link method hrang hrang .
iv. Finger cylinder (air claw) hnathawh dan tur principle .

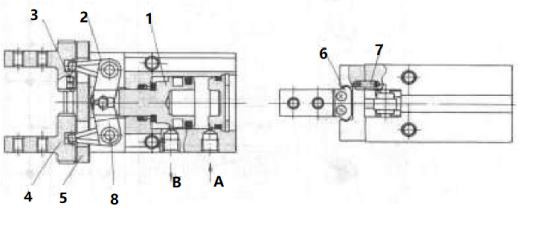

Finger cylinder a working principle diagram chu a hnuaia mi ang hian a ni.
Port A inlet leh port B exhaust-ah chuan cylinder piston rod 1 chu a zau a, lever shaft 8 vel chu lever 2 hmangin a inher a, guide rail 5-a straight outward movement siam turin steel ball set hmangin straight outward movement siam turin a tlan a, kut zungtang pahnih chu a inhawng ang a, workpiece chu a chhuah tir ang. Finger spread stroke tihtlem nan block 6 kha titawp la, linear guide rail alignment tha tak neih theih nan pin 7 zawng rawh.
