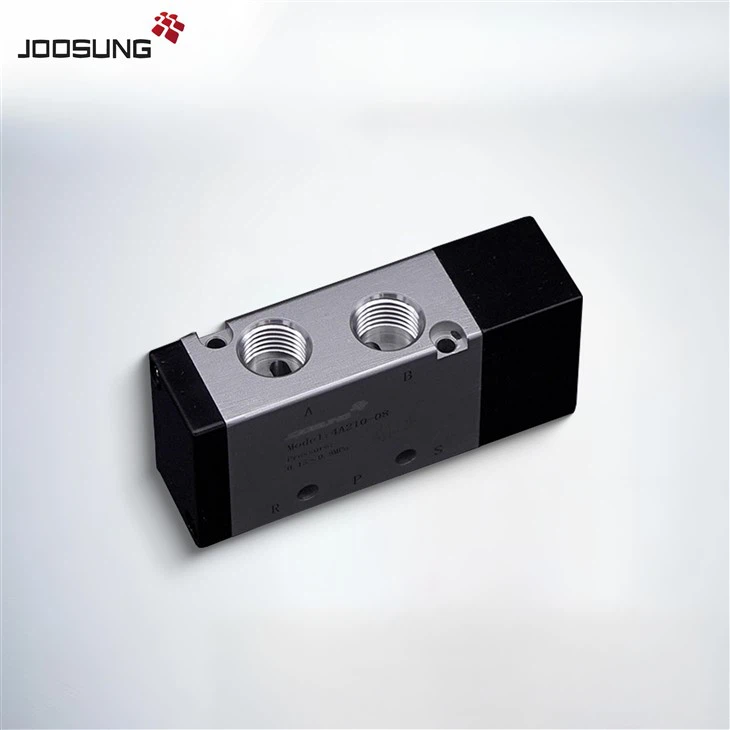

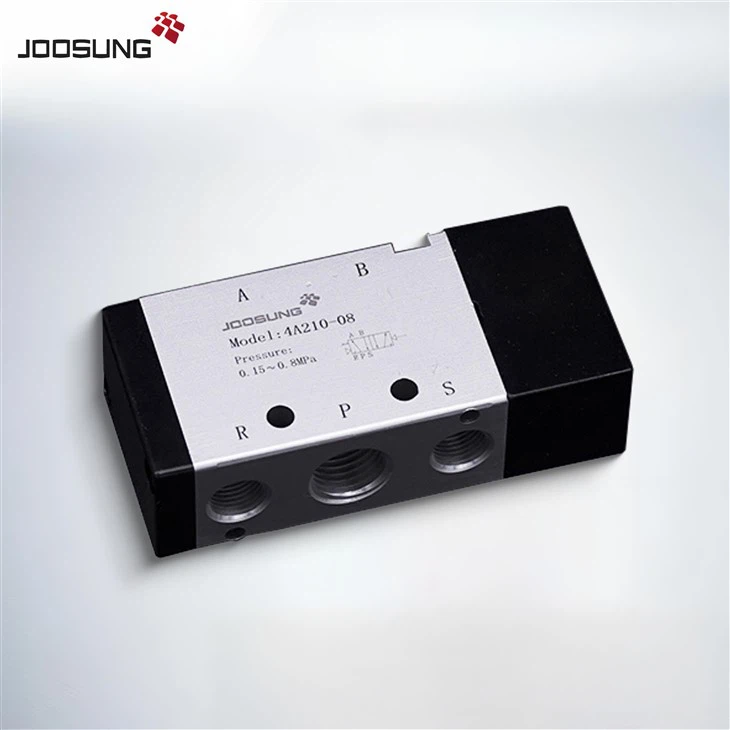

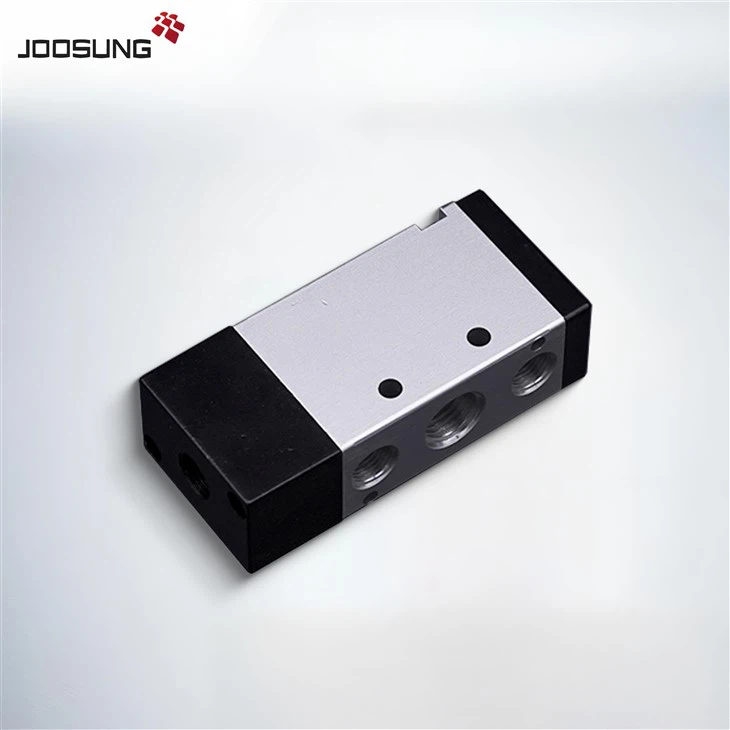

4A200 Series Pneumatic Air Pilot Valves hian mechanical control rintlak tak, medium flow capacity nei a pe a, hei hian automation application hrang hrang atan a tha hle. 5/2 way leh 5/3 way configuration pahnih a awm a, heng air-operated valve te hian electrical input ngai lovin directional switching tha tak an siam thei a ni. An robust leh space-saving design hian industrial production line-a pneumatic cylinder leh actuators te tan hnathawh awlsam tak a pe a ni. China rama professional pneumatic supplier kan nih angin khawvel puma i hmanrua tihchangtlunna tur pui turin 4A200 Series air pilot valves competitive pricing leh consistent availability neiin kan pe chhuak a ni.

Order dan tur .4A200InzawmzatBoruakValve 1000 a ni.
4A 2 10 08 □
① ② ③ ④ ⑤
1Model a ni.	‐Code a ni.	3valve chi hrang hrang a awm .	4Port lian leh te .	5 thread chi hrang hrang .
4A:Air valve(5/2,5/3 way) a ni.	2:200 a ni a.	10:Single air control 5/2 way . 20:Double air control5/2 way . 30C:Double Air Control 5/3 Way khar a ni a, a hmunhma pawh a nuam hle. 30E:Double air control 5/3 way exhaust center 30p:Double air control 5/3 way pressure center	06:1/8" 08:1/4"	Blank:Pt 1000 a ni. G:G t:npt a ni.

Tunah hian kan team te nen inzawmna nei la, technical details kimchang, comprehensive product sheets, leh 4A100 series air pilot valves te chu i industrial automation efficiency ti tha turin competitive pricing i hmu thei ang.

4A200 Series Air Pilot Valve Technical Parameters 1000 a awm bawk.

4A200InzawmzatBoruakValve key hmanga thil tarlanna .
Entawn tlak	4A210-06 4A220-06	4A230C-06 4A230E-06 4A230P-06	4A210-08 4A220-08	4A230C-08 4A230E-08 4A230P-08
Tuiril	Air(40μM filter element hmanga filter tur)
Acting 100 a ni.	Pawn lam control .
Port size [Note1] a ni.	in=Out=A tawp berah chuan a chhuak thei ang.		in=Out=1/4"Exhaust=1/8" tih a ni.
Orifice size(CV) 1000 a ni. [Note4] a ni.	4A210-08,4A220-08:17.0mm2(CV=1.0) 4A230C-08:13.6mm2(CV=0.8)
Valve chi hrang hrang .	5 port 2 a awm a ni.	5 Port 3 a awmna tur hmun .	5 port 2 a awm a ni.	5 Port 3 a awmna tur hmun .
Operating pressure 1000 a ni.	0.15~0.8mpa(21~114psi) a ni.
Proof pressure 1000 a ni.	1.2mpa(175psi) a ni.
Lum leh vawt tehna	-20~70℃a ni.
Taksa thil neih (Material of Taksa) .	aluminum alloy a ni.
Lubrication [Note2] .	A ngai lo .
max.frequency [Note3] tih a ni.	5 cycle/sec a ni.	3 cycle/sec a ni.	5 cycle/sec a ni.	3 cycle/sec a ni.
A rih zawng(g) .	4A210-06:185 4A220-06:285	365	4A210-08:185 4A220-08:285	365
